LiFePO4 cells with transport documents (UN38.3, MSDS) held for our exported models and CE (EMC) coverage confirmed per model. The BMS supports CAN / RS485 communication and the protocols of Deye, Growatt, Voltronic, GoodWe, Pylontech, Victron, SMA and Sofar inverters. Small orders accepted; normal factory runs from 50 packs per model — send your target voltage, capacity and quantity and we return a quotation within 24 hours (GMT+8, working days).
UN38.3 and MSDS documents are held for our exported models. CE (EMC) 2014/30/EU coverage applies to the 72V 38.4Ah model; further models and directives are arranged per order. See Certifications ›
CAN / RS485 communication, compatible with Deye, Growatt, Voltronic, GoodWe, Pylontech, Victron, SMA and Sofar protocols.
5000–6000 cycles on residential series, up to 8000 cycles on the 300W / 500W portable stations. Warranty follows the product category — 5 years on lithium batteries, 3 years on all-in-one systems, 2 years on inverters; cycle conditions per product are confirmed in your quotation — designed for 10+ years of service.
Cells are purchased as A-grade from EVE Energy and CALB; the cell make and model are confirmed for each order. Every step from incoming cell inspection to the finished pack is done at our Xianyang plant. Which other components — inverters, all-in-one enclosures — are made in-house or purchased is confirmed in writing with your quotation.
| Standard | Status | Details |
|---|---|---|
| UN38.3 | Available — 60V25Ah / 72V38.4Ah pack | 60V25Ah pack — ORTSZB01241001008, UN Manual Rev.8, 2024-10-21; 72V38.4Ah pack — ORTSZB04211101078, Rev.6 Amend 1, 2021-12-10. Lab: Shenzhen ORT Technical Services Co., Ltd. (CNAS L9099) |
| CE (EMC) 2014/30/EU | Available — 72V 38.4Ah model | Certificate AT18270EC200095, Shenzhen Anbotek Compliance Laboratory, 2022-11-17. EMC only; does not cover the storage models on this page; other models and directives are arranged per order. |
For each destination market we confirm the status of the relevant standards per product type — NRS 097-2-1 and NRCS LOA for South Africa, AS/NZS 5139, CEC and RCM for Australia, IEC 62619 for stationary storage, and CE (EMC) scope for the EU. We state in writing, before you order, which documents we supply and which you register locally. Full compliance matrix ›
| Series | Model | Nominal Voltage | Capacity | Max Charge / Discharge | Dimensions L×W×H | Weight | Cycle Life | Comms / IP Rating |
|---|---|---|---|---|---|---|---|---|
| HA PRO Wall-mounted | 25.6V 100Ah / 200Ah | 25.6V | 100 / 200Ah | 50/100A · 100/200A | 460×410×139 / 660×410×139 mm | 25.0 / 44.2 kg | 5000+ cycles | CAN/RS485 · IP20 (indoor use) |
| HA PRO Wall-mounted | 51.2V 100Ah / 200Ah | 51.2V | 100 / 200Ah | 50/100A · 100/200A | 660×410×139 / 880×660×160 mm | 44.2 / 88 kg | 5000+ cycles | CAN/RS485 · IP20 (indoor use) |
| HA Wall-mounted | 25.6V 100Ah | 25.6V | 100Ah | 50A / 100A | 460×360×139 mm | 23.2 kg | 5000+ cycles | CAN/RS485 optional · IP20 (indoor use) |
| HA Wall-mounted | 51.2V 50Ah | 51.2V | 50Ah | 25A / 50A | 460×360×139 mm | 23.2 kg | 5000+ cycles | CAN/RS485 optional · IP20 (indoor use) |
| HB PRO Stackable | 51.2V 100Ah ×1/2/4/8 | 51.2V | 100–800Ah | 50–400A / 100–800A · up to 1200A pulse | 670×460×175 mm ×1/2/4/8 | 45 kg ×1/2/4/8 | 5000+ cycles | CAN/RS485 · IP20 (indoor use) |
| HC PLUS Rack | 51.2V 100 / 200 / 280 / 314Ah | 51.2V | 100–314Ah | up to 200A / 200A | 565×440×132 / 600×440×240 / 745×440×240 mm | 45 / 87 / 118 kg | 6000 cycles | CAN/RS485 optional · IP20 (indoor use) |
| HD PLUS Plastic case | 12.8V 100Ah | 12.8V | 100Ah | 50A / 100A | 331×171×218 mm | 10.0 kg | 3000 cycles | Bluetooth optional · IP65 |
| HD PLUS Plastic case | 12.8V 200Ah | 12.8V | 200Ah | 100A / 200A | 522×242×218 mm | 20.0 kg | 3000 cycles | Bluetooth optional · IP65 |
| HD PLUS Plastic case | 12.8V 280Ah | 12.8V | 280Ah | 100A / 200A | 522×242×218 mm | 27.0 kg | 3000 cycles | Bluetooth optional · IP65 |
| HD PLUS Plastic case | 12.8V 314Ah | 12.8V | 314Ah | 100A / 200A | 523×269×218 mm | 27.2 kg | 3000 cycles | Bluetooth optional · IP65 |
| HD PLUS Plastic case | 25.6V 100 / 206Ah | 25.6V | 100 / 206Ah | 50/100A | 523×269×218 mm | 20.2 / 35.5 kg | 3000 cycles | Bluetooth optional · IP65 |
| HF PRO Tower | 51.2V 280 / 314Ah | 51.2V | 280 / 314Ah | 200A / 200A | 800×450×286 mm | 118 kg | 6000 cycles | CAN/RS485 · IP20 (indoor use) |
| HH PRO Floor-standing | 51.2V 200 / 300Ah | 51.2V | 200 / 300Ah | up to 200A / 200A | 720×450×250 / 800×450×250 mm | 90 / 118 kg | 6000 cycles | CAN/RS485/WiFi · IP20 (indoor use) |
| HA PRO MAX Floor-standing | 25.6V 400Ah | 25.6V | 400Ah | 200A / 200A | 800×660×139 mm | 88 kg | 5000+ cycles | CAN/RS485 · IP20 (indoor use) |
| HA PRO MAX Floor-standing | 51.2V 200Ah | 51.2V | 200Ah | 100A / 200A | 800×660×139 mm | 88 kg | 5000+ cycles | CAN/RS485 · IP20 (indoor use) |
BMS communication is compatible with Deye, Growatt, Voltronic, GoodWe, Pylontech, Victron, SMA and Sofar inverter protocols. 5-year warranty on lithium batteries; cycle conditions per product are confirmed in your quotation. Designed for 10+ years of service. HD PLUS series is IP65; HA PRO / HB PRO are IP20 for indoor use. Efficiency figures are provided in the datasheet on request. Cycle life figures follow the product brochure; test conditions are confirmed in your quotation.

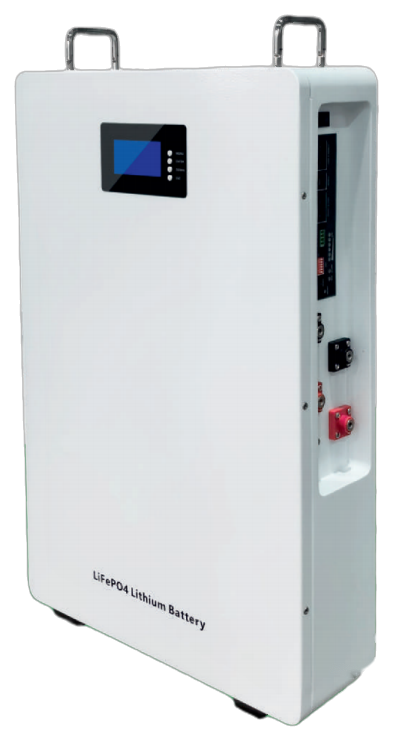

HA PRO Wall-mounted
View specifications ›

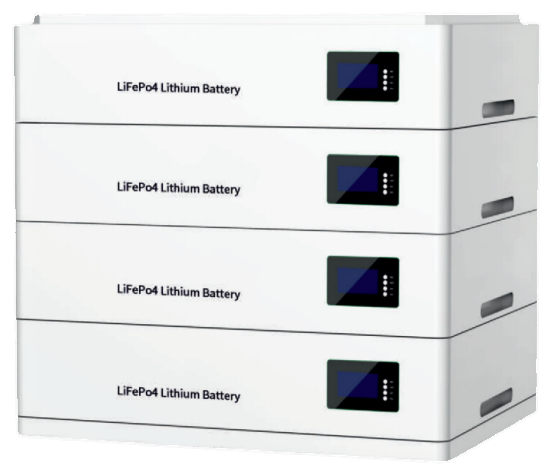

HB PRO Stackable
View specifications ›

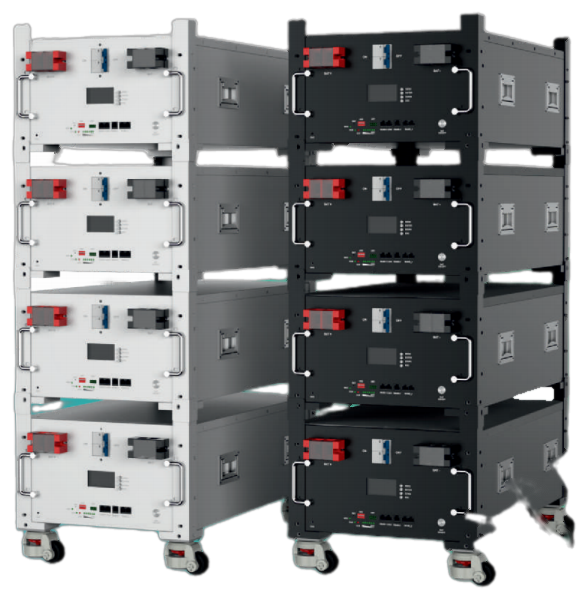

HC PLUS Rack
View specifications ›

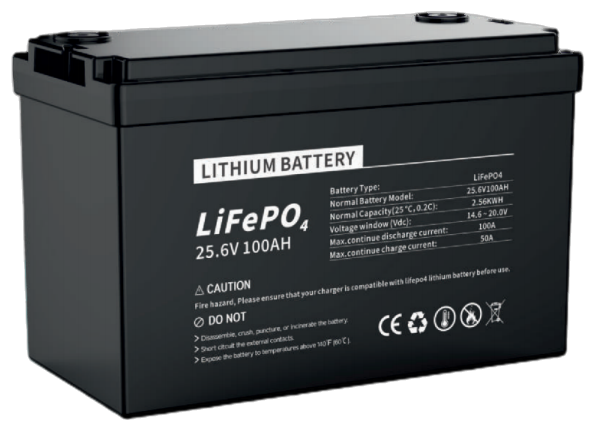

HD PLUS Plastic Case
View specifications ›

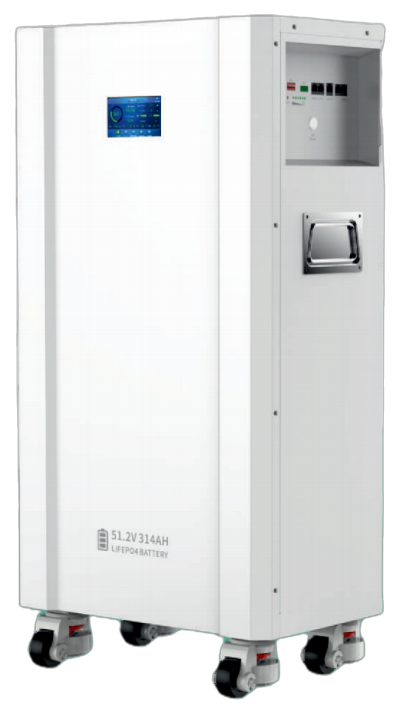

HF PRO Tower
View specifications ›

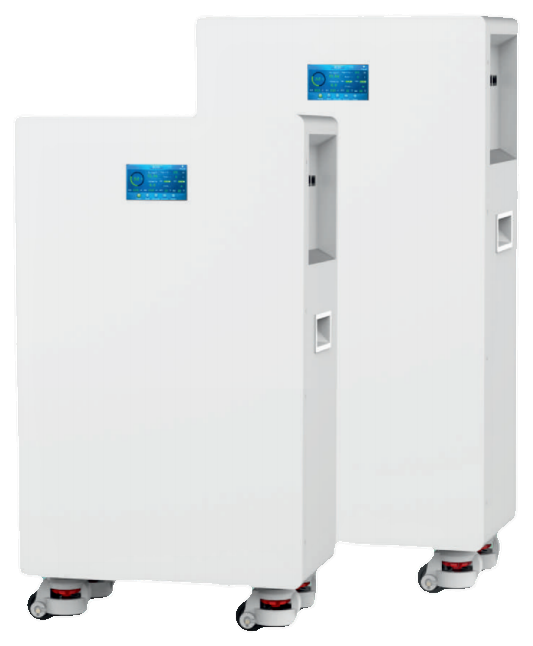

HH PRO Floor-standing
View specifications ›Images are for reference only; the actual product shall prevail.

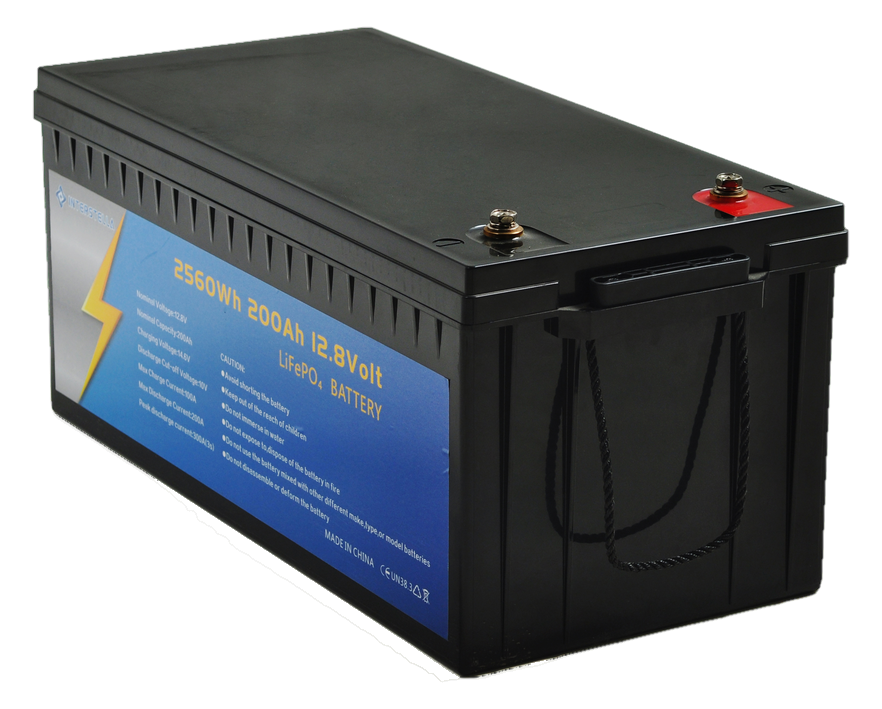

12.8V 200Ah Pack
View specifications ›Images are for reference only; the actual product shall prevail.
3.6 kW and above — hybrid, stackable and rack configurations.
| Model | Rated Power | Battery Energy | Battery Voltage | AC Output | MPPT Solar Range | Cycles |
|---|---|---|---|---|---|---|
| ESS 3.6kW + 5kWh | 3.6kW | 5kWh | 25.6V | — | 40–450V | — |
| ESS 3.6kW + 8kWh | 3.6kW | 8kWh | 25.6V | — | 40–450V | — |
| ESS 6kW + 10kWh | 6kW | 10kWh | 51.2V | — | 80–450V | — |
| ESS 6kW + 16kWh | 6kW | 16kWh | 51.2V | — | 80–450V | — |
| ESS HX 6kW + 16kWh (hybrid) | 6kW | 16kWh | 51.2V | — | 80–520V | — |
| ESS 12kW + 16kWh | 12kW | 16kWh | 51.2V | — | 60–450V | — |
| ESS 12kW + 30kWh | 12kW | 30kWh | 51.2V | — | 60–450V | — |
| ESS 10kW + 30kWh (stackable) | 10kW | 30kWh | 51.2V | — | 60–450V | — |
| ESS 12kW + 60kWh (stackable) | 12kW | 60kWh | 51.2V | — | 60–450V | — |
| ESS 12kW + 64kWh (rack) | 12kW | 64kWh | 51.2V | — | 60–450V | — |
| Model | Rated Power | Battery Energy | Battery Voltage | AC Output | MPPT Solar Range | Cycles |
|---|---|---|---|---|---|---|
| ESS HY 10kW + 30kWh (US split-phase) | 10kW | 30kWh | 51.2V | 120/240V split-phase | 90–485V | — |
| ESS HY 12kW + 30kWh (US split-phase) | 12kW | 30kWh | 51.2V | 120/240V split-phase | 90–485V | — |
Pure sine-wave output; lithium and lead-acid battery support, generator compatibility, WiFi monitoring, with grid-tie and parallel expansion on selected models. Battery-mode efficiency (brochure figures): 92.7% @24 VDC on the 3.6 kW series, 93% @48 VDC on the 6 kW series, 94% @48 VDC on the 12 kW series; HX max. efficiency 96.65%, HY max. efficiency >95%. HY series provides US 120/240V split-phase output. Cycle life figures follow the product brochure; test conditions are confirmed in your quotation. Full specifications are given in the product datasheet.

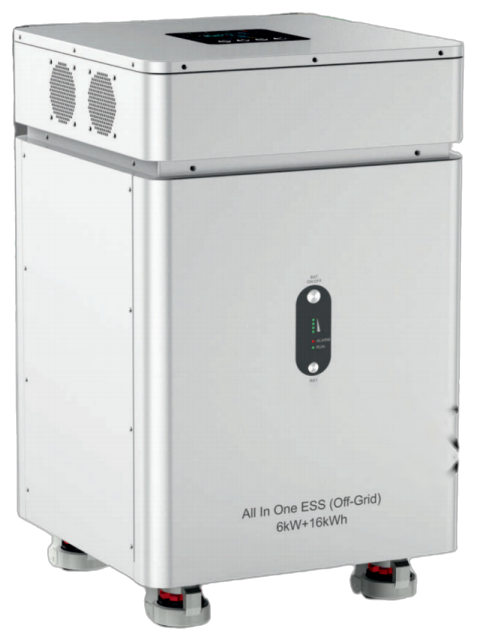

ESS 6kW 16kWh
View specifications ›

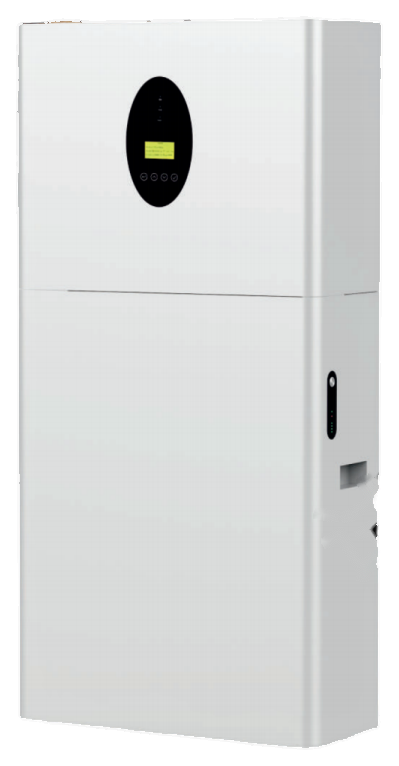

ESS HX 6kW
View specifications ›

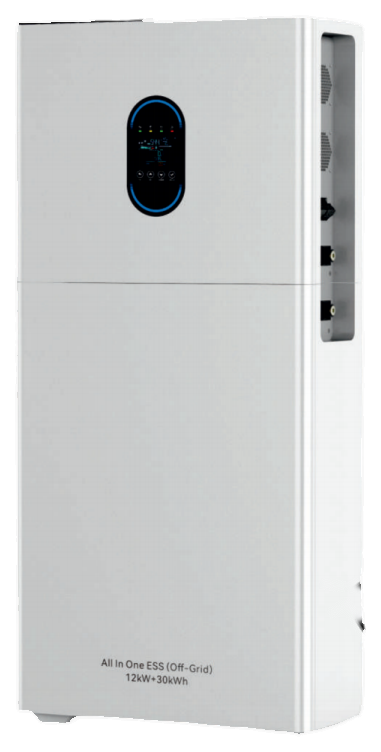

ESS 12kW 30kWh
View specifications ›Images are for reference only; the actual product shall prevail.
| Model | Nominal Voltage | Capacity | Energy | Max Charge / Discharge | Cycle Life | Application |
|---|---|---|---|---|---|---|
| HV PRO 20.4kWh | 224V | 4 × 100Ah | 20.48kWh | 50A / 100A | 5000 cycles | Residential high-voltage storage |
| HV PRO 30.7kWh | 336V | 6 × 100Ah | 30.72kWh | 50A / 100A | 5000 cycles | Residential high-voltage storage |
| HV PRO 40.9kWh | 448V | 8 × 100Ah | 40.96kWh | 50A / 100A | 5000 cycles | Residential high-voltage storage |
| HV PRO 51.2kWh | 560V | 10 × 100Ah | 51.20kWh | 50A / 100A | 5000 cycles | Residential high-voltage storage |
| HV PRO MAX 100kWh cabinet | 358.4V | 280Ah | 100.35kWh | 150A / 150A | 6000 cycles | Commercial & industrial storage |
| HV PRO MAX 200kWh cabinet | 640V | 314Ah | 200.96kWh | 200A / 200A | 6000 cycles | Commercial & industrial storage |
| 166.4V 324Ah HV pack | 166.4V | 324Ah | ≈53.9 kWh (calculated) | 0.5P / 0.5P | 6000 cycles | Commercial & industrial energy storage |
Built from 51.2V / 100Ah modules in series — HV PRO nominal voltage per datasheet is 224 / 336 / 448 / 560V (working windows 185.6–224 / 278.4–336 / 371.2–448 / 464–560V). HV PRO MAX cabinets scale from 240V to 720V (5–15 modules). 166.4V 324Ah: liquid cooling / liquid heating, IP67, 1040×810×242 mm, 340 kg. 80% depth of discharge, 15+ years of service, CAN / Modbus RTU communication.
Small orders accepted — a first order can be a single cabinet or rack to evaluate on a real site. Normal factory runs start at 50 packs per model, typically 45 days from deposit.
Datasheets for each series are sent by email on request — tell us which series you need and we return the PDFs with your quotation.
Sizing, UN38.3, warranty and inverter compatibility are answered on our FAQ page.
Portable stations sit outside our core 51.2V residential line and are listed here for reference.
| Model | Rated Power | Battery Energy | Battery Voltage | AC Output | MPPT Solar Range | Cycles |
|---|---|---|---|---|---|---|
| ESS 300W + 896Wh | 300W | 896Wh | — | — | 10–55V | 8000 cycles |
| ESS 500W + 1000Wh | 500W | 1000Wh | — | — | 10–55V | 8000 cycles |
| ESS 1000W + 2009Wh | 1000W | 2009Wh | — | — | 13–55V | — |
| ESS-W 1000W + 2009Wh (wall-mounted) | 1000W | 2009Wh | — | — | 13–55V | — |
Cycle life figures follow the product brochure; test conditions are confirmed in your quotation. Full specifications are given in the product datasheet.

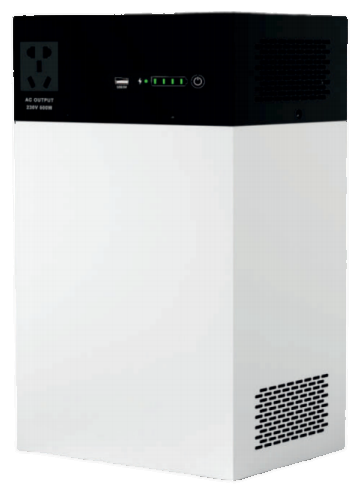

ESS 300W
View specifications ›

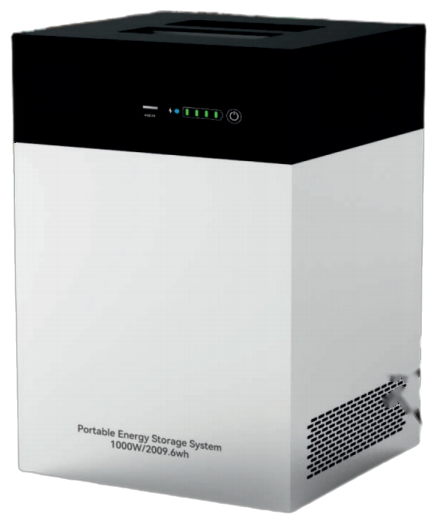

ESS 1000W
View specifications ›

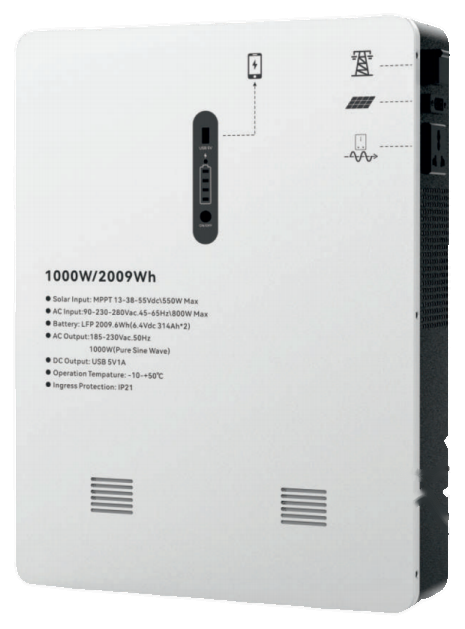

ESS-W 1000W
View specifications ›Images are for reference only; the actual product shall prevail.
