OTHER APPLICATIONS

Other Battery Applications

Golf cart and low-speed vehicle packs, e-bike and e-motorcycle batteries, battery-swap packs, and high-voltage and special-purpose systems. Small orders accepted; normal factory runs from 50 packs per model — send your target voltage, capacity and quantity and we return a quotation within 24 hours (GMT+8, working days).

View Energy Storage · Residential / C&I / Portable ›

GOLF CART & LSV

Golf Cart & LSV Batteries

Custom LiFePO4 packs for golf carts and low-speed vehicles, matched to your vehicle's voltage, capacity, mounting and connectors. We have completed a small number of golf cart battery custom projects. Send us your vehicle model and requirements; we reply with a feasibility assessment within 24 hours.

Tell us about your vehicle ›

E-bike & E-motorcycle Battery Packs

Model	Cell Chemistry	Operating Voltage	Charge Current	Discharge Current	Dimensions L×W×H	Weight
48V 25Ah	LiFePO4	37.5–54.75V	12.5A	25A	180×163×270 mm	10.2 kg
72V 40Ah	NCM	56–84V	20A	80A	220×170×360 mm	17.5 kg
72V 100Ah	NCM	56–84V	50A	120A	330×230×360 mm	44 kg
72V 116Ah	NCM	56–84V	50A	150A	595×260×185 mm	50 kg

Production Gallery · Light-traction Packs

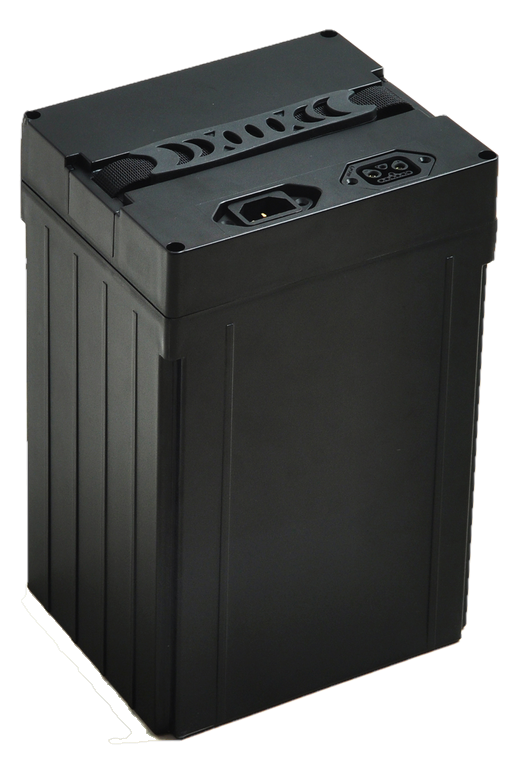

48V 25Ah Pack

View specifications ›

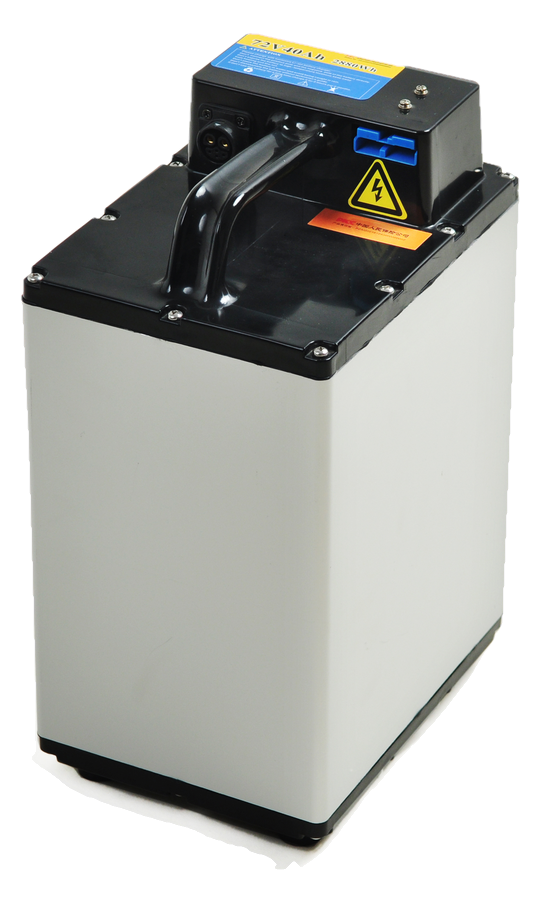

72V 40Ah NCM battery pack for high-speed e-motorcycles

72V 40Ah Pack

View specifications ›

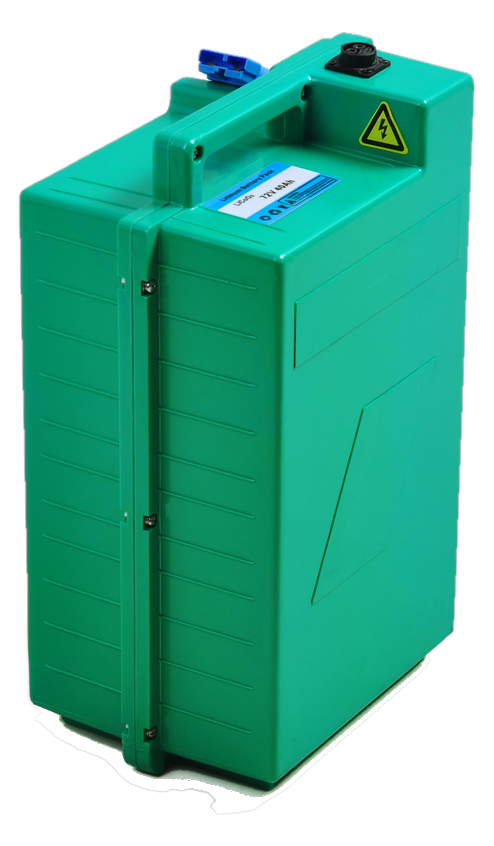

72V 40Ah · Green Case

View specifications ›

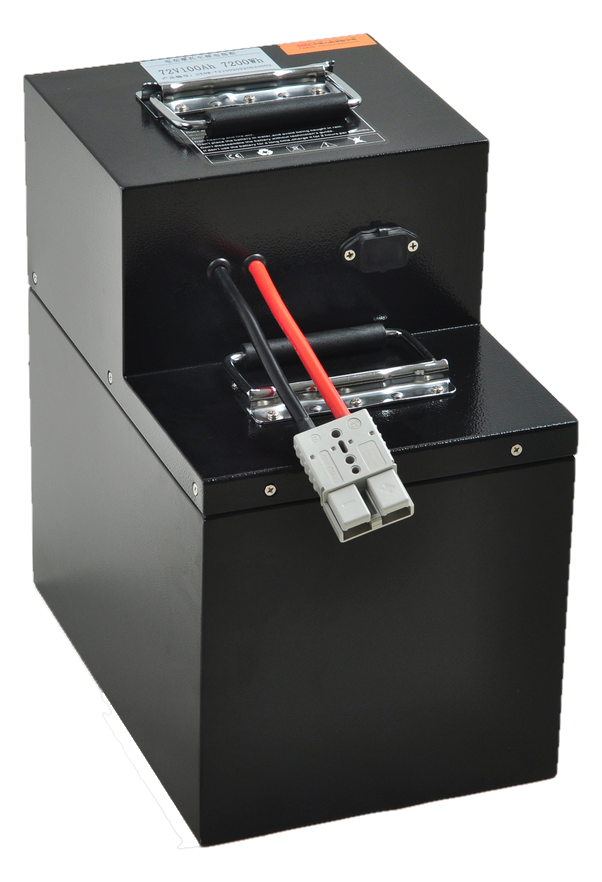

72V 100Ah NCM pack for high-speed e-motorcycles

72V 100Ah Pack

View specifications ›

Images are for reference only; the actual product shall prevail.

Battery-swap Packs 4G + RS485 connected

Built for swap-network operators: remote SOC monitoring, fleet health telemetry, support for operator-defined protocols and fully custom communication protocols on request.

Model	Cell Chemistry	Voltage Range	Charge	Discharge	Peak	Dimensions L×W×H	Weight	Comms
64V 25Ah	LiFePO4	50–73V	15A	45A	75A/3s	205×150×295 mm	approx. 15 kg	4G / RS485
64V 30Ah	LiFePO4	50–73V	15A	50A	75A/3s	188×170×334 mm	17 kg	4G / RS485
72V 32Ah	NCM	55–84V	16A	45A	80A/3s	187×165×331 mm	15 kg	4G / RS485
72V 60Ah	NCM	55–84V	20A	80A	100A/3s	229×180×327 mm	23 kg	4G / RS485
76.8V 30Ah	LiFePO4	60–87.6V	15A	50A	75A/3s	230×190×335 mm	approx. 20 kg	4G / RS485

All specifications verified against the manufacturer data sheet. Typical applications: food and parcel delivery, daily commuting, municipal fleets, campuses and tourism sites.

Production Gallery · Battery-swap

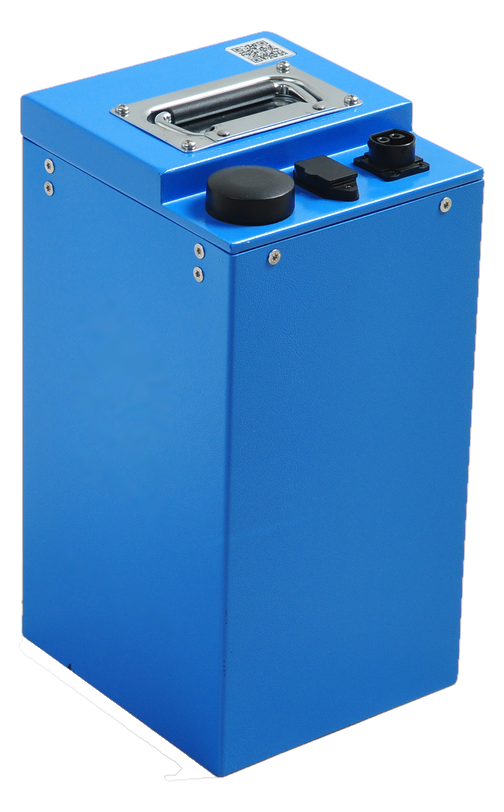

64V 30Ah

View specifications ›

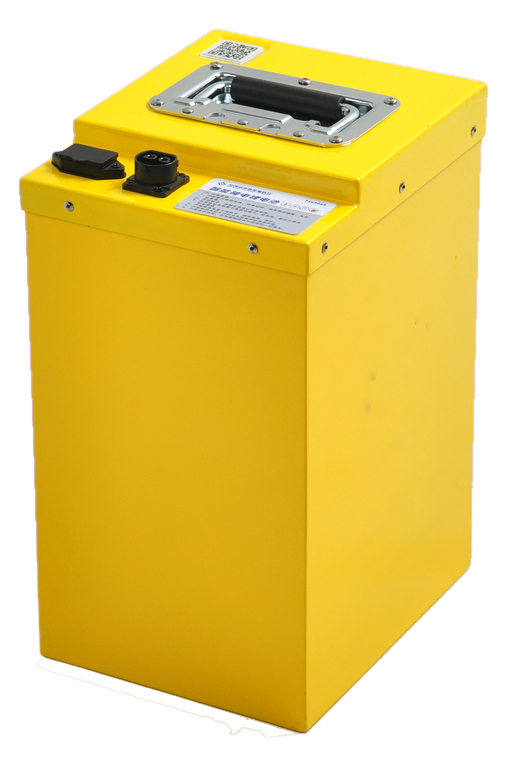

76.8V 30Ah

View specifications ›

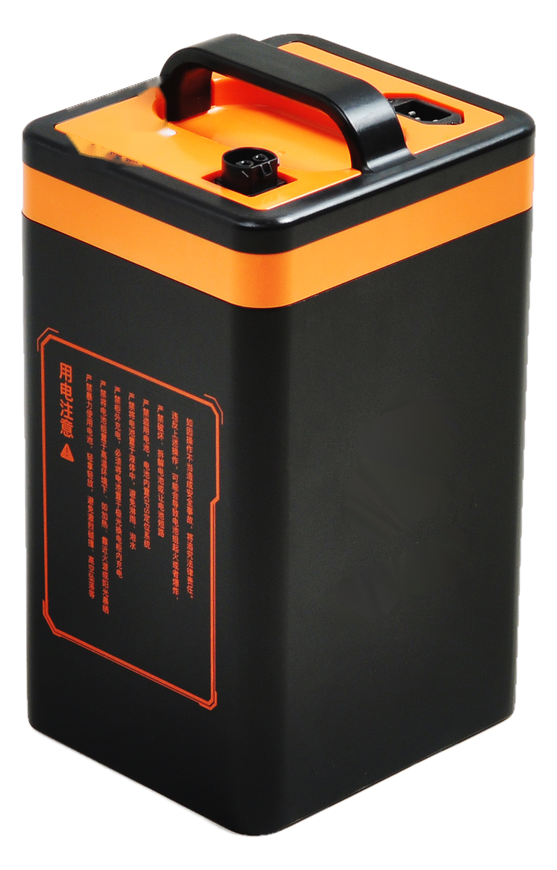

72V 32Ah

View specifications ›

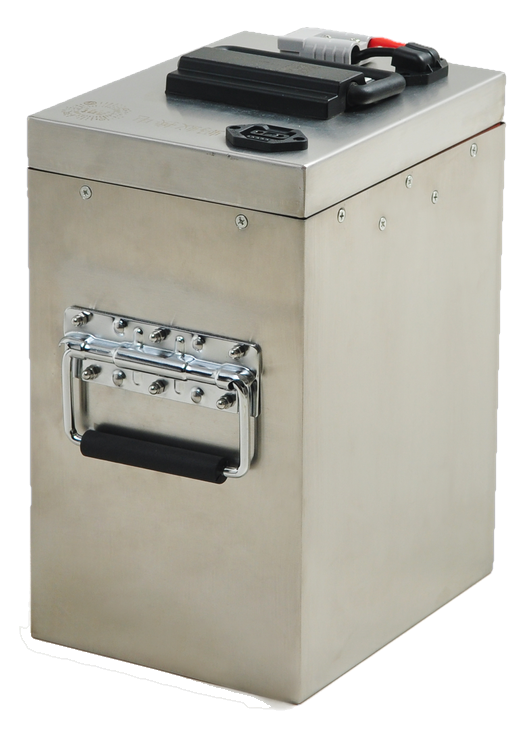

72V 60Ah

View specifications ›

Images are for reference only; the actual product shall prevail.

HIGH-VOLTAGE POWER

High-voltage Power Battery Systems

High-voltage battery systems for all-electric buses, construction machinery and underground explosion-proof vehicles.

Model	Cell Chemistry	Operating Voltage	Charge / Discharge	Dimensions L×W×H	Weight	Cooling / Heating	IP Rating / Cycles	Application
153.6V 230Ah	LiFePO4	120–175.2V	230A / 250A	1035×650×229 mm	226 kg	Optional liquid cooling / electric heating	IP67 · 4000 cycles	All-electric buses, wheel loaders and other electrified construction machinery
320V 100Ah	LiFePO4	250–365V	50A / 100A	1406×832×330 mm	725 kg	Natural convection cooling	IP67 · 3000 cycles	Underground explosion-proof electric vehicles

Production Gallery · High-voltage Power

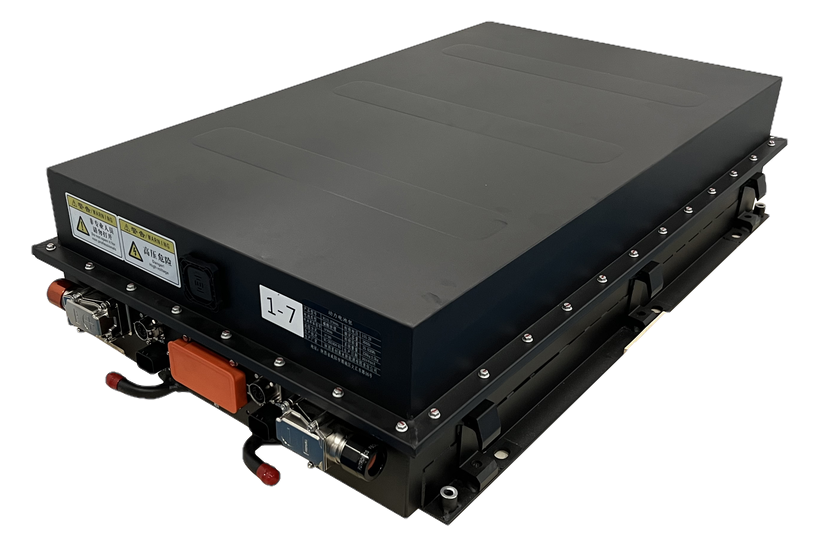

153.6V 230Ah

View specifications ›

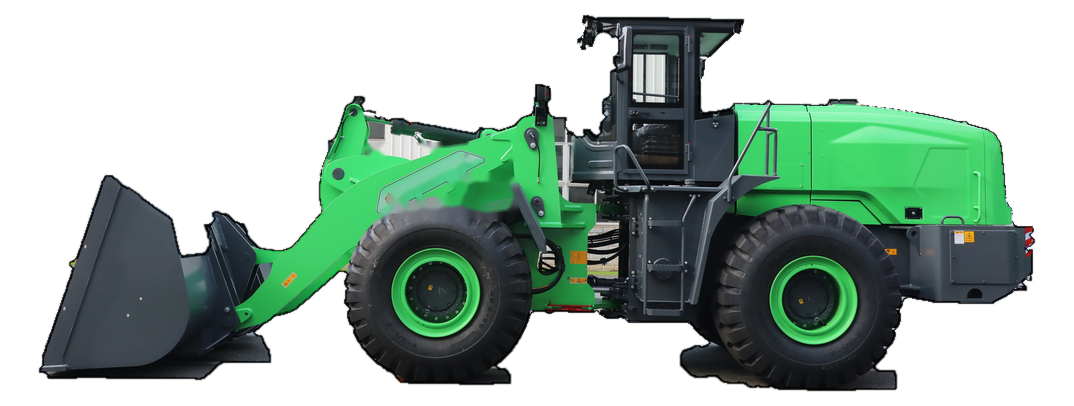

Wheel Loader · Application

View specifications ›

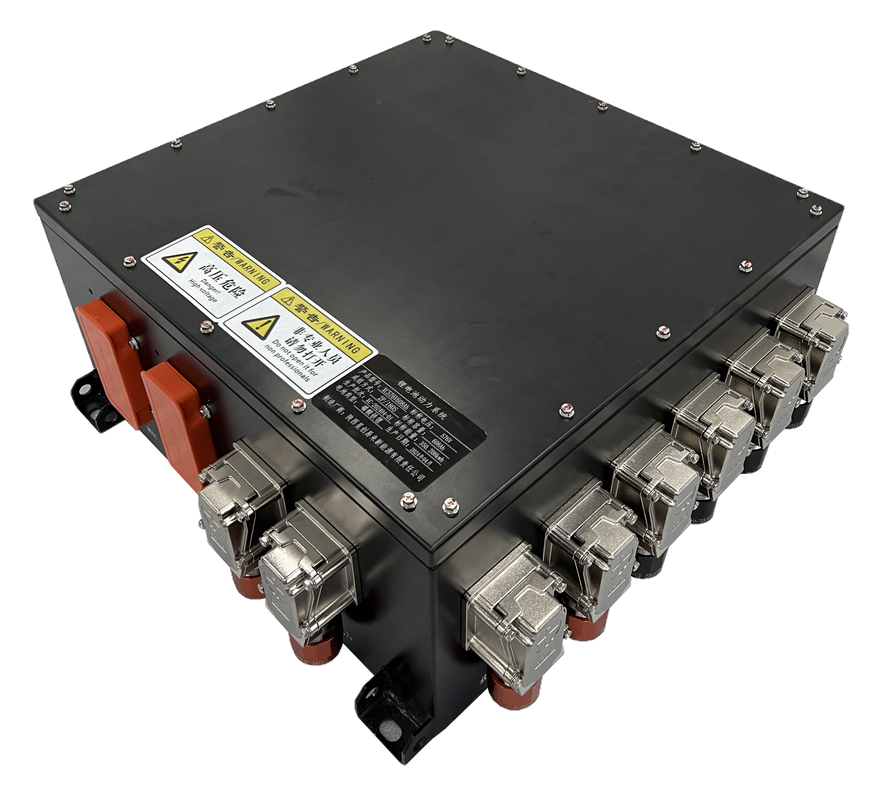

Loader Pack · 153.6V

View specifications ›

Images are for reference only; the actual product shall prevail.

SPECIAL POWER

Special-purpose Power Products

Motorcycle starter batteries, lithium UPS, marine and hydro-engineering power systems.

Model	Operating Voltage	Charge / Discharge	Dimensions L×W×H	Weight	Application

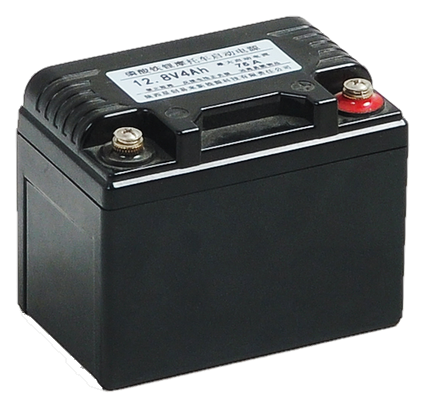

Motorcycle starter 12.8V 4Ah	10–14.4V	2A / 75A	112×68×88 mm	0.8 kg	Starting batteries for petrol motorcycles

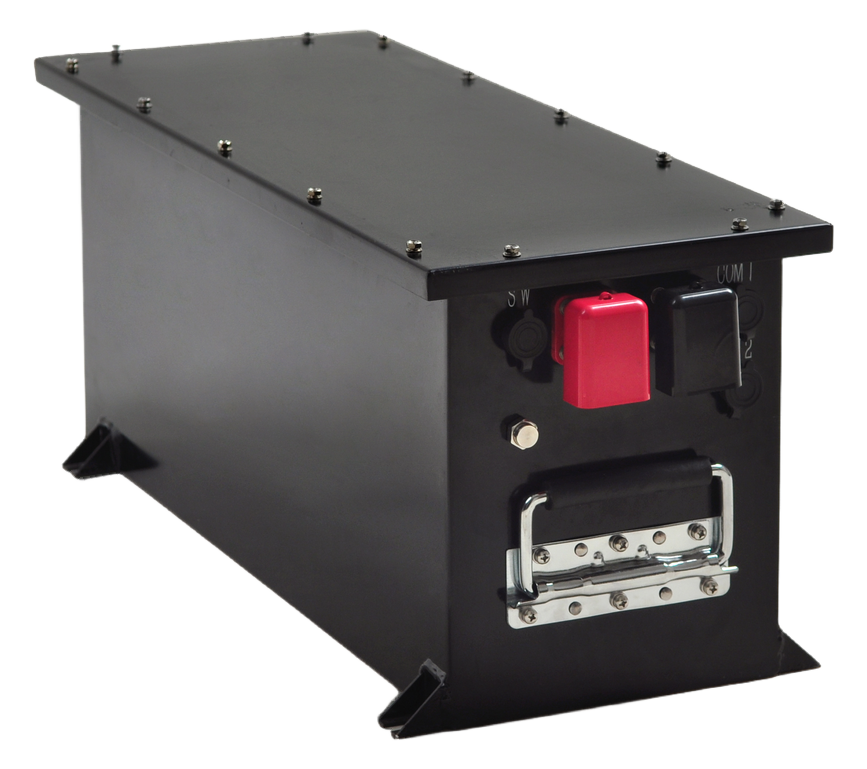

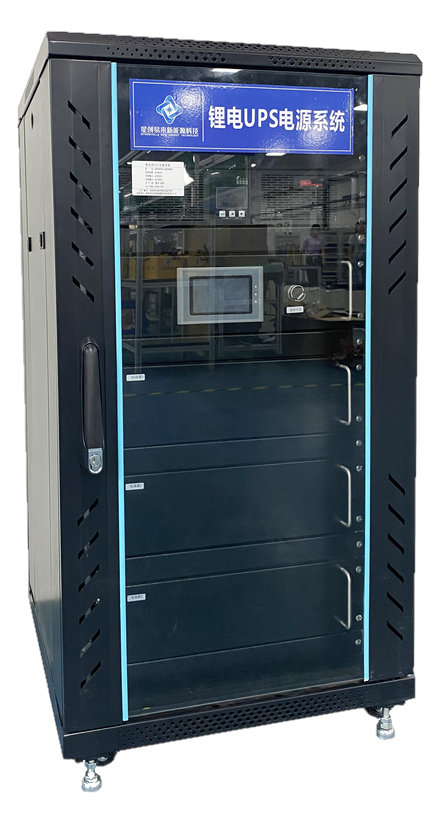

DC A/C Power 51.2V 100Ah	40–57.6V	80A / 100A	580×220×245 mm	42.9 kg	Refrigerated trucks, lorry air conditioning, cooling equipment
96V 156Ah	Rated 96V · Charge voltage 110V	15A / 150A	696×600×1240 mm	approx. 220 kg	Large vessels, hydro and water-conservancy projects
192V 56Ah	162–219V	4–10A / 56A	600×600×1200 mm	240 kg	Data-centre standby power, security systems, C&I storage

The 96V 156Ah data sheet lists rated voltage (96V) and charge voltage (110V) rather than an operating voltage range. All specifications above were verified against the manufacturer data sheet.
